Ultra-Bright Multi-Color Integrating Sphere

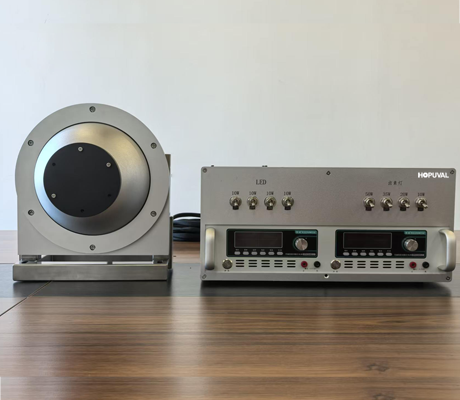

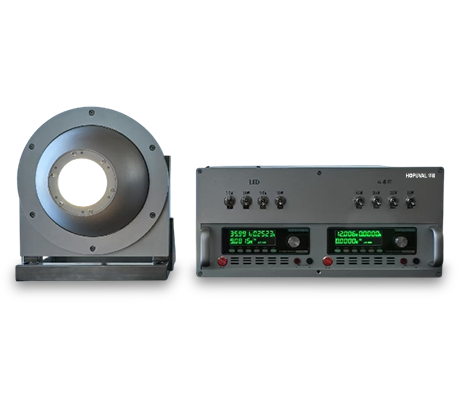

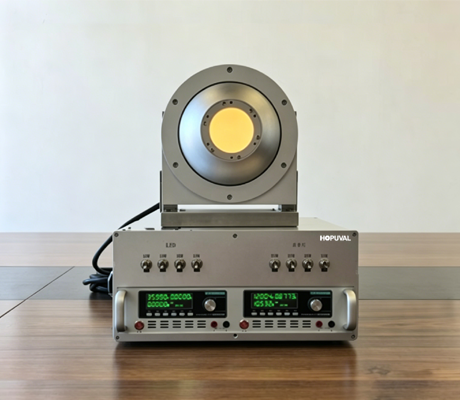

This product is a 200mm compact integrating sphere light source, lined with high-reflectance PTFE or barium sulfate coating. It delivers exceptional light field uniformity and cosine characteristics, with stable and tunable output. Boasting a wide illuminance range and a spectral coverage of 400–1100nm, it supports dual light source configuration and continuous color temperature adjustment. It is ideally suited for high-precision optical applications including sensor calibration, optical inspection, illuminance calibration, and imaging system testing.
-
01/Compact Structure
Adopting an integrating sphere design with a 200mm inner diameter, it features an overall envelope dimension of ≤350mm. The compact footprint facilitates easy installation, deployment, and adaptation to diverse application scenarios. -
02/Exceptional Optical Performance
It achieves a light emitting surface uniformity better than 98%, and an angular cosine characteristic of 98% @ ±15°. The output light field is highly stable with uniform distribution, guaranteeing testing accuracy. -
03/Stable and Reliable Output
The 1-hour instability of the light source is ≤0.5%, with minimal luminance fluctuation during long-term operation, fully meeting the requirements of continuous high-precision inspection. -
04/Wide-Range Tunable Control
It provides an illuminance coverage of 100 – 500000 Lux, with continuous stepless brightness adjustment, and flexible color temperature tuning within the range of 3000K to 5000K, adapting to the testing standards of multiple scenarios. -
05/Rich Spectral and Light Source Configurations

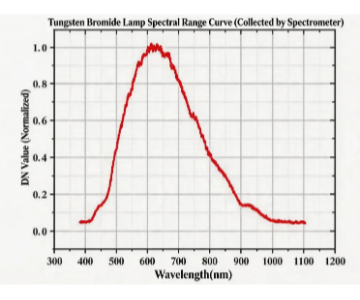

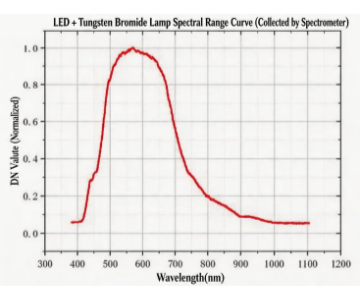

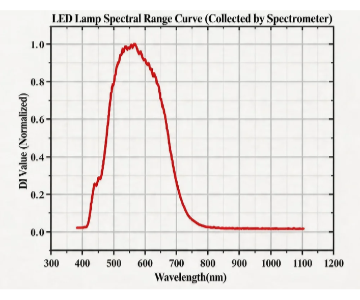

With a spectral range of 400nm – 1100nm, it is compatible with both LED and halogen lamp light source, applicable for detection from the visible to near-infrared (NIR) bands. -
06/High-Reflectance Coating Material
The inner wall is coated with PTFE or barium sulfate material, with a reflectance of ≥95%. It enables high light efficiency utilization, and effectively improves the light output quality and test consistency.
Item | Specification |
Integrating Sphere Inner Diameter | 200mm |
Overall Envelope Dimension of Integrating Sphere | ≤350mm |
Light Emitting Surface Uniformity | Better than 98% |
Light Source Cosine Characteristic | 98%(@±15°) |
Light Source Instability | ≤0.5/1h |
Light Source Illuminance Range | 100-500000Lux |
Spectral Range | 400nm-1100nm |
Light Source Brightness Level | Continuously tunable brightness level |
Coating Material | PTFE、Barium Sulfate |
Coating Reflectance | ≥95% |
Light Source Options | LED、Halogen Lamp |
Color Temperature Tuning Range | 3000k-5000k |
